Drilling & Milling Machine

Drilling & Milling Machine

GK00093

Product Description


Standard Accessories

  • Drill Chuck
  • Taper sleeve(ZX7016 without)
  • Drift
  • Drawbar
  • Cutter (ZX7016 without)
  • Arbor
  • Wrench

Special Accessories

  • Milling Chuck
  • Safety guard
  • Angle vice
  • Stand

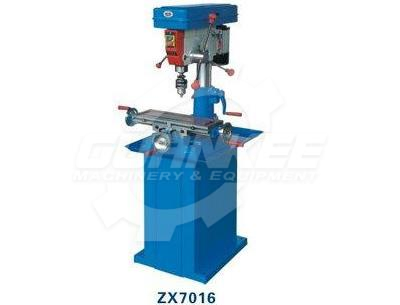

Model ZX7016 ZX7025 ZX7032 ZX7045
Max.Drilling Capacity(mm) 16 25 31.5 45
Max.Face Mill Capacity (mm) 40 63 80 80
Diameter of vertical miling(mm) 10 13 22 28
Spindle Travel(mm) 80 110 130 120
Distance spindle axis to column generating line(mm) 182 240 202 260
Max.Distance spindle nose totable 360 510 460 475
Spindle Taper MT2 MT3 MT3 MT4
Spindle Speeds Range 320-3300 290-2150 100-2150 95-1600
Spindle speeds Series 12 5 12 6
Dimension of worktable surface 420X152 555X195 730X210 820X240
Table Travel 230X120 240X140 450X170 540X170
Overall height 900 1130 1100 1050
Motor 550 750(6P) 1100 1500 750 1100
G.W/N.W 80/75(carton)
100/75(wood case)		 190/160 285/250 318/278
Packing Dimension 88X62X26.5(carton)
65X58X77(wood case)		 87X67X102 86X74X116
97X77X116		 86X74X116
97X77X116
